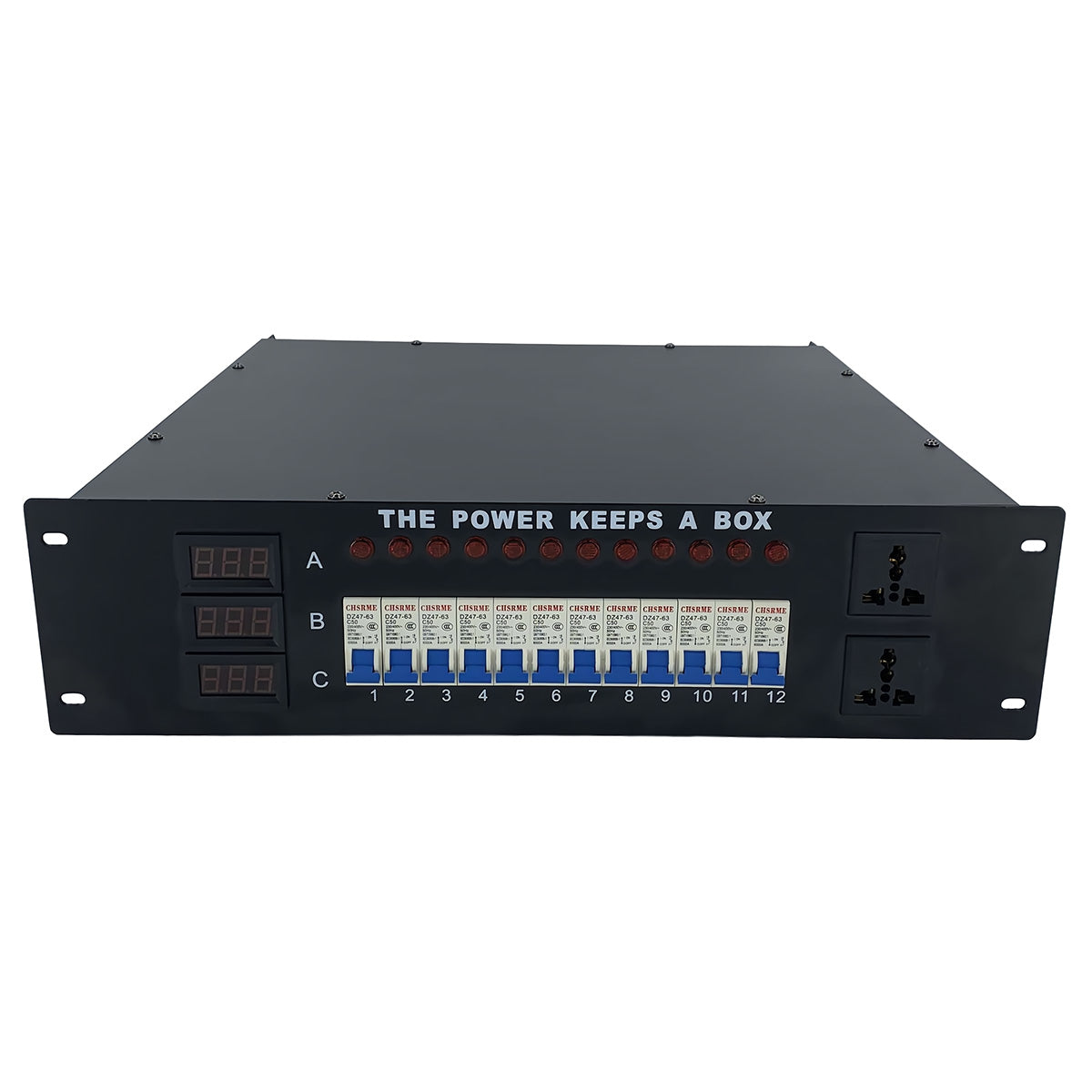

12-Channel Power Distribution Box AC380V

12-Channel Power Distribution Box — Professional Stage Power Management

This 12-channel power distribution box is engineered for professional stage and event productions requiring reliable, high-capacity three-phase power distribution. With dual overload and short-circuit protection, it safeguards your equipment while delivering clean, stable power across all 12 independent circuits.

Key Specifications

• Power Supply: Three-phase five-wire AC380V ±10%, 50Hz ±5%
• Rated Output: 12 channels x 4KW — compatible with any load type
• Protection: Dual overload and short-circuit protection with high-break circuit breakers
• Phase Indicators: A / B / C three-phase working status indicator lights
• Outlets: 2-pin and 3-pin universal sockets for versatile connectivity
• Input: Professional imported terminal block input; single 40A bakelite plug output
• Dimensions: 515mm x 485mm x 133mm
• Weight: 12KG

Ideal For

Concerts, music festivals, theatrical productions, and any professional event requiring safe, organized multi-circuit power distribution for stage lighting and equipment.
