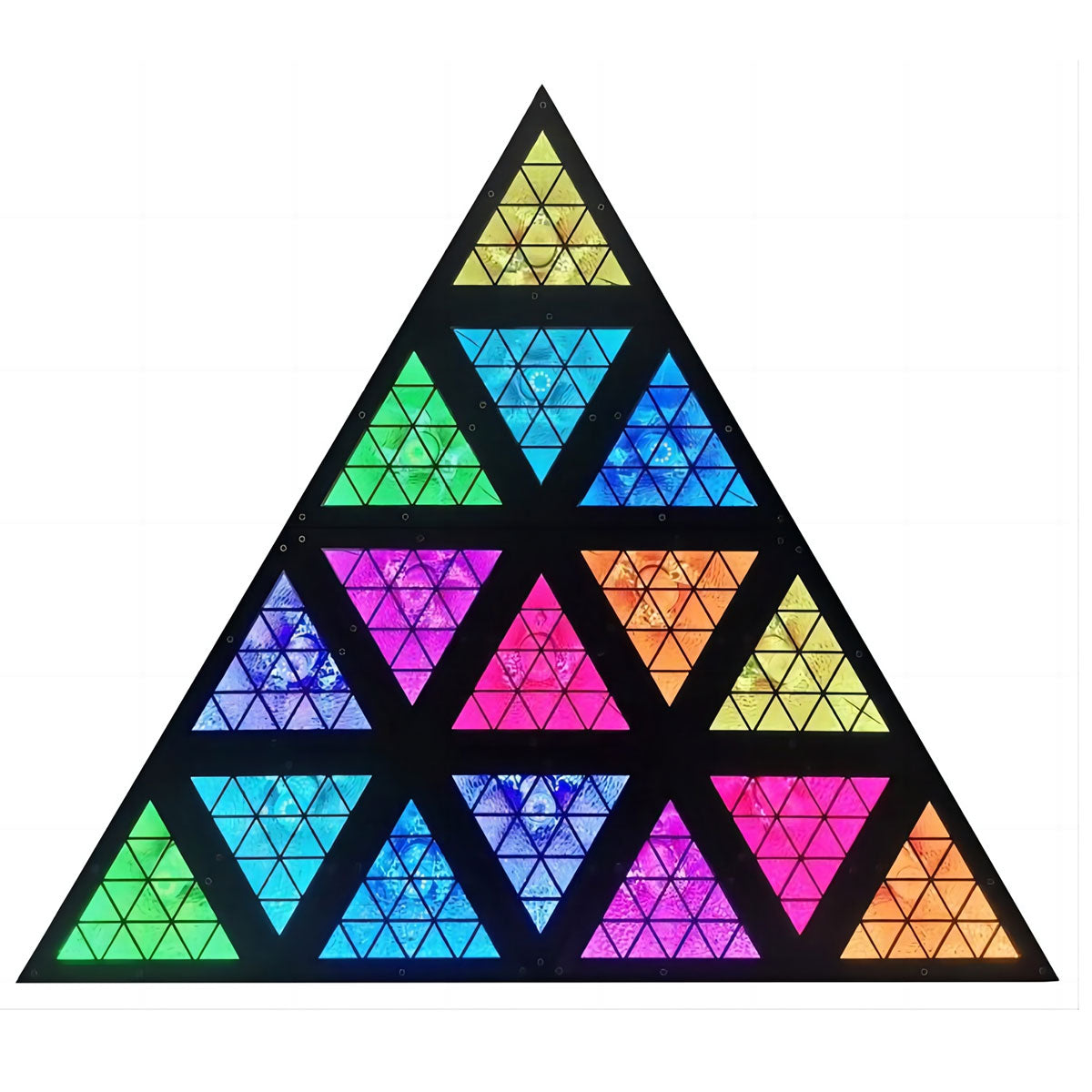

16-Cell Triangle Pixel Matrix Stage Light 250W

16-Cell Triangle Pixel Matrix Light — 250W Dynamic Geometric Stage Effects

The 16-Cell Triangle Pixel Matrix Light is a visually striking geometric fixture engineered for modern club design, DJ stage backdrops, music festivals, and live concert tours. Featuring 16 individually controllable triangular LED segments arranged in an interlocking pyramid design, it supports up to 80 DMX channels for high-density pixel mapping, fluid color gradients, and hypnotic geometric chases.

Key Specifications

• Power Consumption: 250W
• Input Voltage: AC90V–240V, 50/60Hz
• Optical Architecture: 16 individual triangular pixel-controlled cells in a modular pyramid frame
• Control Modes: DMX512, Standalone Auto Programs, Sound-Activated
• DMX Channel Modes: 12CH (compact mode) / 80CH (full individual cell pixel mapping)
• Display: High-visibility LED digital menu
• DMX Connections: 3-Pin XLR Input / Output
• Visual Effects: Geometric color chases, kaleidoscope patterns, pulse dimming, and custom pixel-mapped text/graphics
• Rigging & Splicing: Modular interlocking frame suitable for back wall matrix installations, overhead truss mounting, or vertical stage arrays

Ideal For

Nightclub central ceiling installations, electronic music festivals, DJ booths, live touring backdrops, TV variety shows, and immersive art exhibitions.
