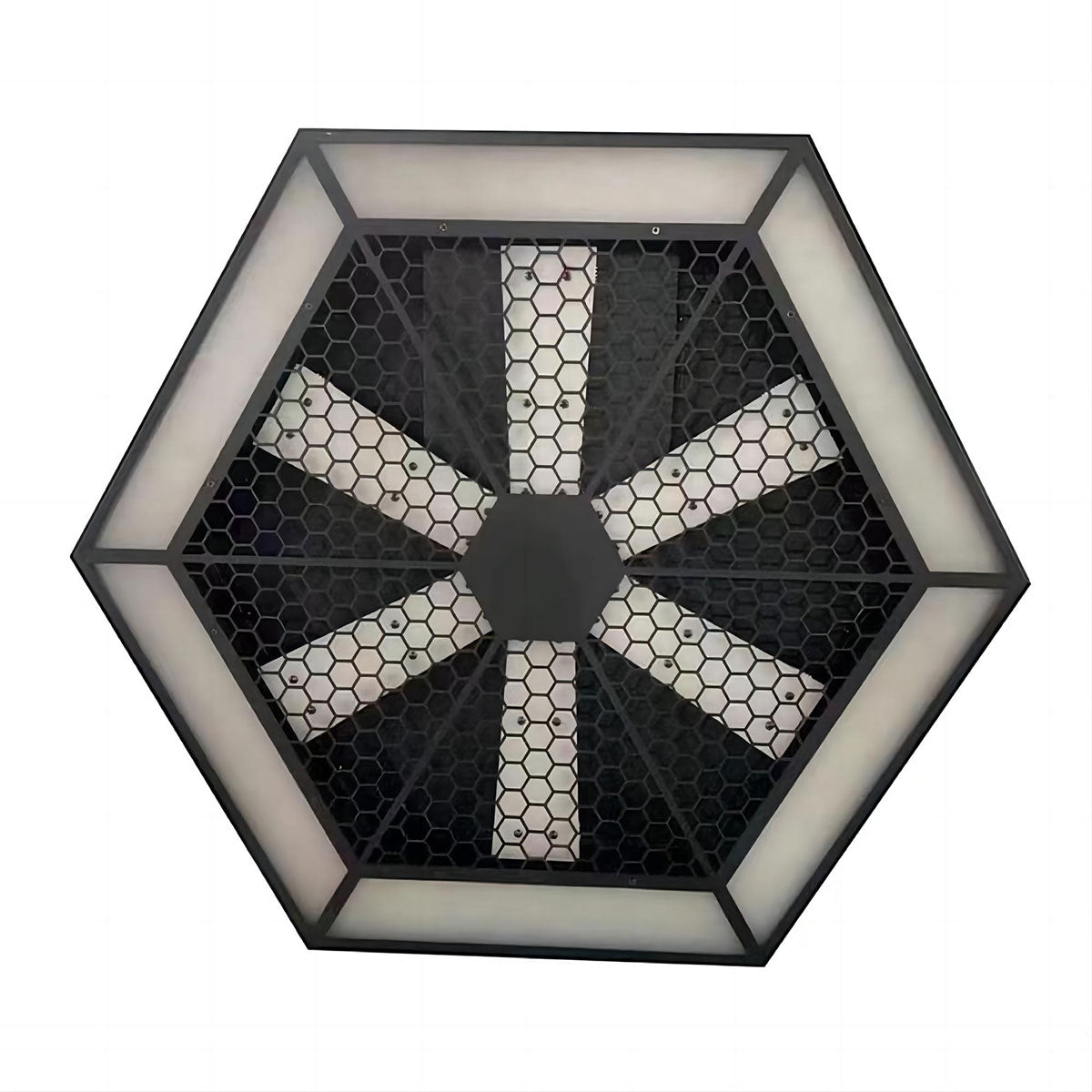

200W Hexagon LED Stage Fan Effect Light

Please Note: All our professional lighting equipment is built-to-order to ensure the highest quality. Please allow a few days for production and rigorous testing prior to shipping.

Create mesmerizing visual centerpieces with the 200W Hexagon LED Stage Fan Effect Light. Featuring an eye-catching hexagonal frame and a 6-blade turbine aesthetic, this fixture combines dynamic stage wash, high-speed strobe, and intricate pixel-mapping effects. Powered by 576 ultra-bright 5050 SMD LEDs, it delivers smooth 32-bit linear dimming, lightning-fast 1-30Hz strobing, and versatile control up to 290 DMX channels for complex visual matrix programming.

Key Features

• Stunning Hexagon Fan Design: Blends retro industrial style with cutting-edge LED technology, creating a powerful visual impact on stage even when powered off.
• Dual Functionality (Wash + Blinder/Strobe): 576 premium 5050 LEDs produce intense color washing and high-speed 1-30Hz blinding flashes.
• Advanced Pixel Mapping: Multiple channel modes (5CH, 13CH, up to 290CH) allow complete individual segment control for custom animations, chases, and text/pattern effects.
• Ultra-Smooth 32-Bit Dimming: Delivers flicker-free, stepless 0-100% dimming suitable for broadcast cameras and live concerts.
• Robust Metal Construction: Heavy-duty black metal housing engineered for touring, festivals, clubs, and high-end TV productions.

Technical Specifications

• Model: AC100
• Input Voltage: AC 100~240V, 50/60Hz
• Power Consumption: 200W
• Light Source: 576 pcs 5050 SMD LEDs
• Control Modes: DMX512, Auto, Sound Active, Master/Slave, RDM supported
• DMX Channels: 05CH / 13CH / 290CH
• Dimming: 32-bit 0-100% linear dimming
• Strobe Frequency: 1-30 Hz
• Display: LED LCD digital display
• Working Temperature: -30℃ ~ 50℃
• Housing: Metal, Black Finish
• Connections: DMX 3-Pin In/Out, Power In/Out
• Dimensions: 66 x 66 x 22.5 cm
