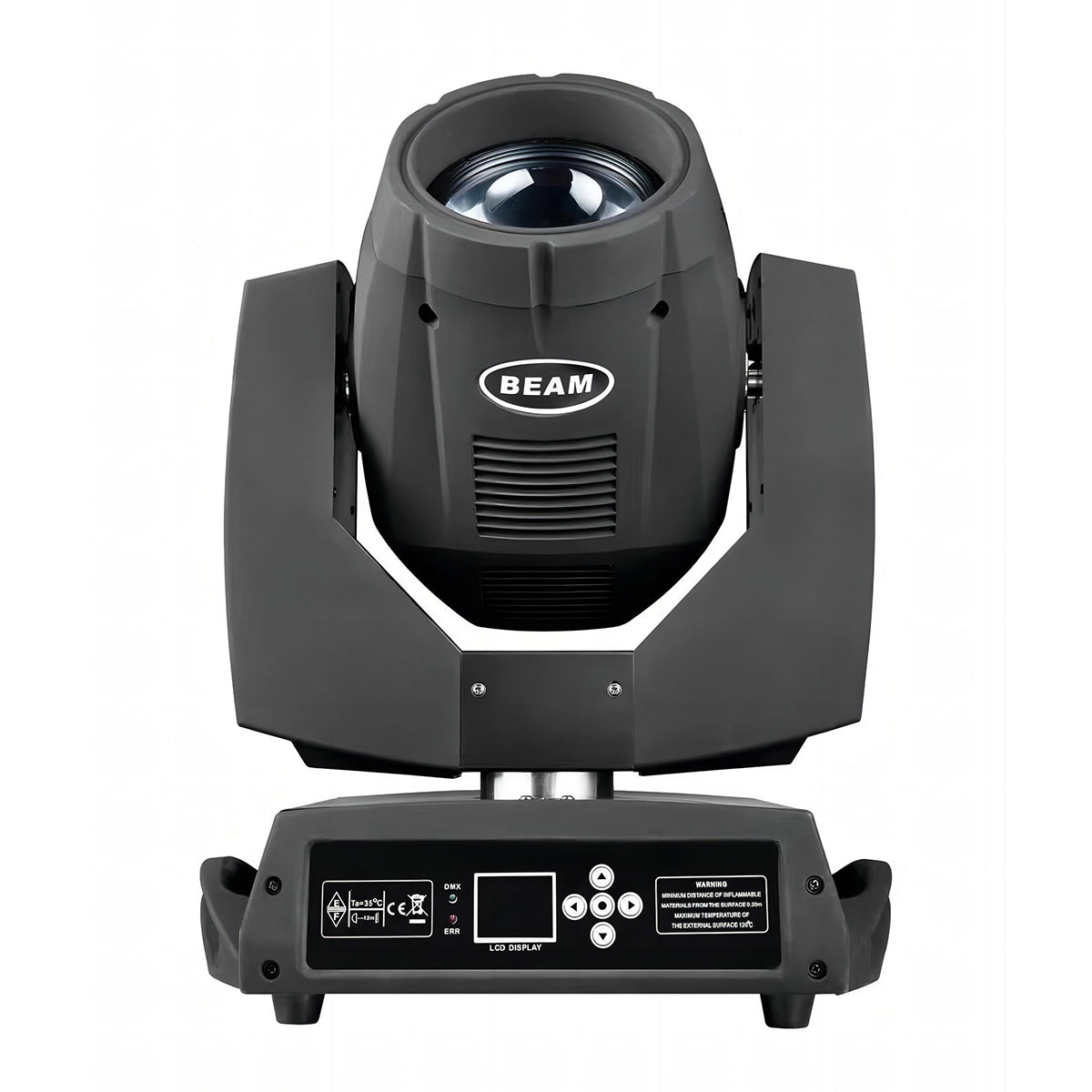

230W Moving Head Beam Light

230W Moving Head Beam Light — Precision Beam, Professional Performance

The 230W Moving Head Beam Light delivers a razor-sharp 3.8° beam with a comprehensive effects system, built for touring productions, concerts, and large-scale events. Featuring RDM two-way control, intelligent energy-saving, and automatic error correction, it sets the standard for reliability and performance in professional stage lighting.

Electrical System

• Input Voltage: 110V–240V, 50–60Hz
• Rated Power: 400W
• Power Interface: Speakon input/output
• Signal Interface: 3-pin XLR input/output

Optical System

• Light Source: 230W | Color Temperature: 7500K | CRI ≥80
• Beam Angle: 3.8° | Electronic linear focus
• Lamp Life: 2,000 hours

Effects System

• Gobo: 1 fixed gobo wheel with 17 patterns + open white; bi-directional rotation with shake effect
• Color: 14-color wheel + open white; bi-directional rainbow effect
• Prism: 24-facet rotating prism, bi-directional variable speed
• Frost: 1 frost filter
• Dimming: 0–100% linear
• Strobe: 0.3–20 flashes/sec; pulse, sync/async strobe macro

Control & Movement

• DMX Channels: 16 / 20 channels
• Control: DMX512 / RDM / Master-slave / Auto / Sound-activated / Custom program
• Pan: 540° (8/16-bit) | Tilt: 270° (8/16-bit)
• Display: LCD screen, 180° rotation, bilingual menu (EN/CN)

Physical Specifications

• Mounting: Hanging or side-mount | Quick-lock with optional folding hook
• Operating Temperature: -20°C to 40°C | IP20
• Net Weight: 13KG | Dimensions: 390 x 330 x 520mm
