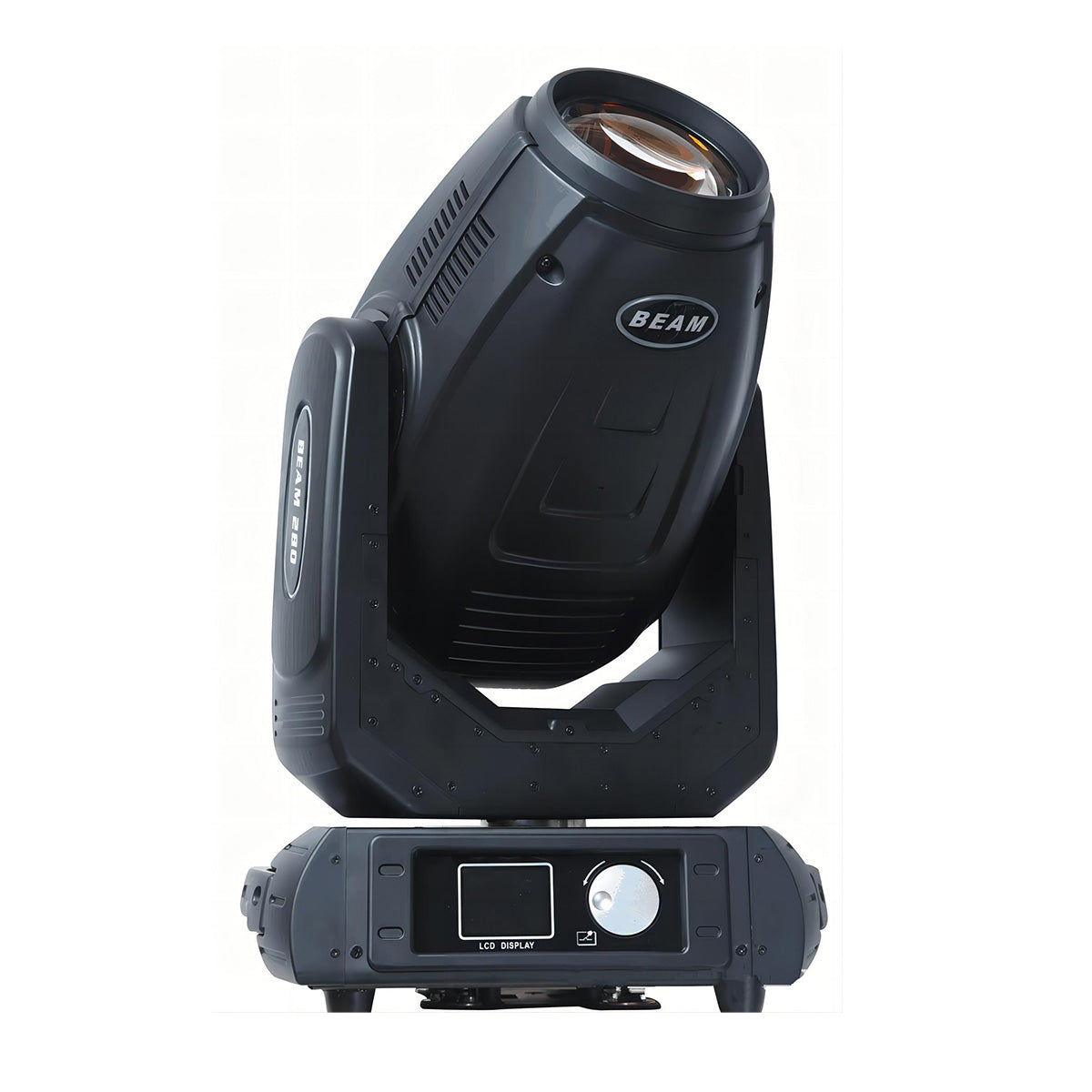

280W 10R Beam Spot Wash 3-in-1 Moving Head Light (3.8°-45° Zoom)

280W 10R Beam Spot Wash 3-in-1 Moving Head Light — 3.8° to 45° Motorized Zoom

The 280W 10R 3-in-1 Moving Head Light is an exceptionally versatile hybrid fixture combining piercing beam intensity, crisp spot gobo projections, and smooth wash blending in a single compact housing. Powered by a high-output 280W 10R discharge lamp and a motorized 3.8°–45° optical zoom assembly, it adapts effortlessly to any concert stage, live tour, corporate gala, or nightclub environment.

Key Specifications

• Light Source: 280W 10R high-intensity discharge lamp
• Rated Total Power: 450W with high-efficiency switching power supply
• Input Voltage: AC100–240V, 50/60Hz
• Motorized Zoom Range: 3.8° to 45° linear adjustable optical zoom with motorized precision focus
• Color System: 1 color wheel with 14 dichroic colors + open white (split-color and rainbow effects)
• Gobo Systems: Dual wheels — 14 fixed metal gobos + open; 9 interchangeable rotating glass/metal gobos + open with shake effect
• Prism Effects: Rotatable 8-facet circular prism + rotatable 6-facet linear prism with bi-directional variable speeds
• Dimming & Strobe: 0–100% smooth mechanical/electronic dimming; 1–25 flashes/sec high-speed strobe with macros
• Pan / Tilt Movement: 540° Pan / 270° Tilt (8-bit/16-bit) with photoelectric auto-error correction and positioning
• Control Modes: DMX512, Master/Slave Multi-fixture Sync, Standalone Auto Run
• Chassis & Safety: High-temperature molded composite shell with intelligent overheat protection | IP20 rating
• Dimensions & Weight: 386 x 365 x 589 mm | Net Weight 19 KG

Ideal For

Touring concert productions, theatrical venues, corporate auditoriums, wedding staging, church sanctuaries, and premier nightlife clubs.
