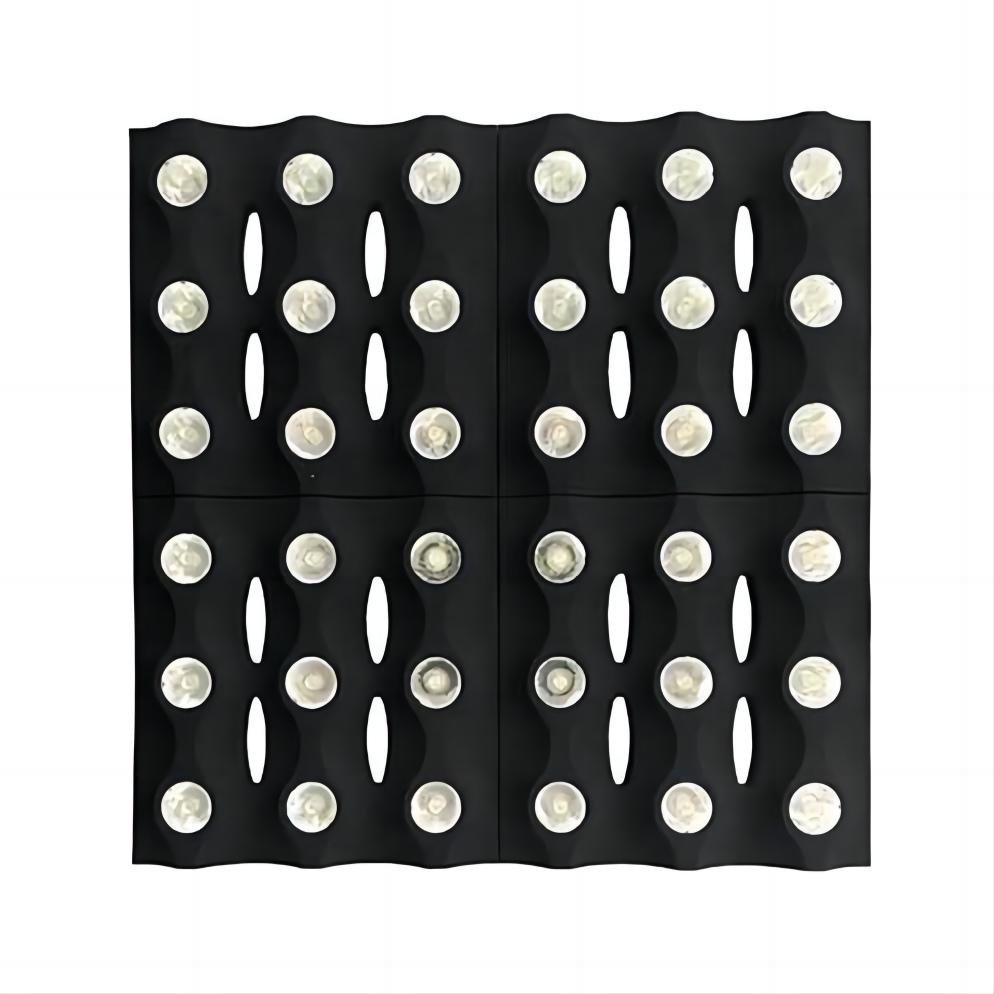

36x3W Golden Matrix Blinder Panel 120W (Pixel Control)

36x3W Golden Matrix Blinder Panel — Modular Warm White Pixel Mapping Stage Wall

The 36x3W Golden Matrix Blinder Panel delivers the iconic retro incandescent halogen glow with cutting-edge LED reliability. Engineered with 36 high-efficiency 3W warm/pure white LEDs in a 6x6 grid, this fixture produces punchy 6° parallel light beams ideal for stadium audience blinders, touring stage backdrops, and dynamic text/graphic pixel mapping.

Key Specifications

• Light Source: 36 x 3W high-efficiency Warm White / Pure White LEDs (6x6 matrix layout)
• Rated Power: 120W
• Input Voltage: AC100–240V, 50/60Hz
• Beam Angle: 6° tight beam column (8° radiation field)
• Pixel Mapping: Individual per-LED point control for generating custom letters, numbers, running waves, and vintage blinder chases
• Dimming Technology: Advanced 16-bit smooth linear dimming with 1200Hz high-frequency flicker-free camera performance
• Modular Splicing: Seamless interlocking chassis design allowing multiple units to lock together into massive backdrop walls or vertical matrix columns
• Control Modes: DMX512 (multi-channel modes), Standalone Auto, Master/Slave, Sound-Active
• Display: Intuitive LCD display menu with tactile setting buttons
• Lifespan: 50,000 hours
• Dimensions: 550 x 550 x 250 mm
• Weight: Net 7.35 KG | Gross 8.05 KG

Ideal For

Concert backdrop walls, electronic music festival staging, TV live broadcasts, retro acoustic sets, touring stage blinders, and architectural grid installations.
