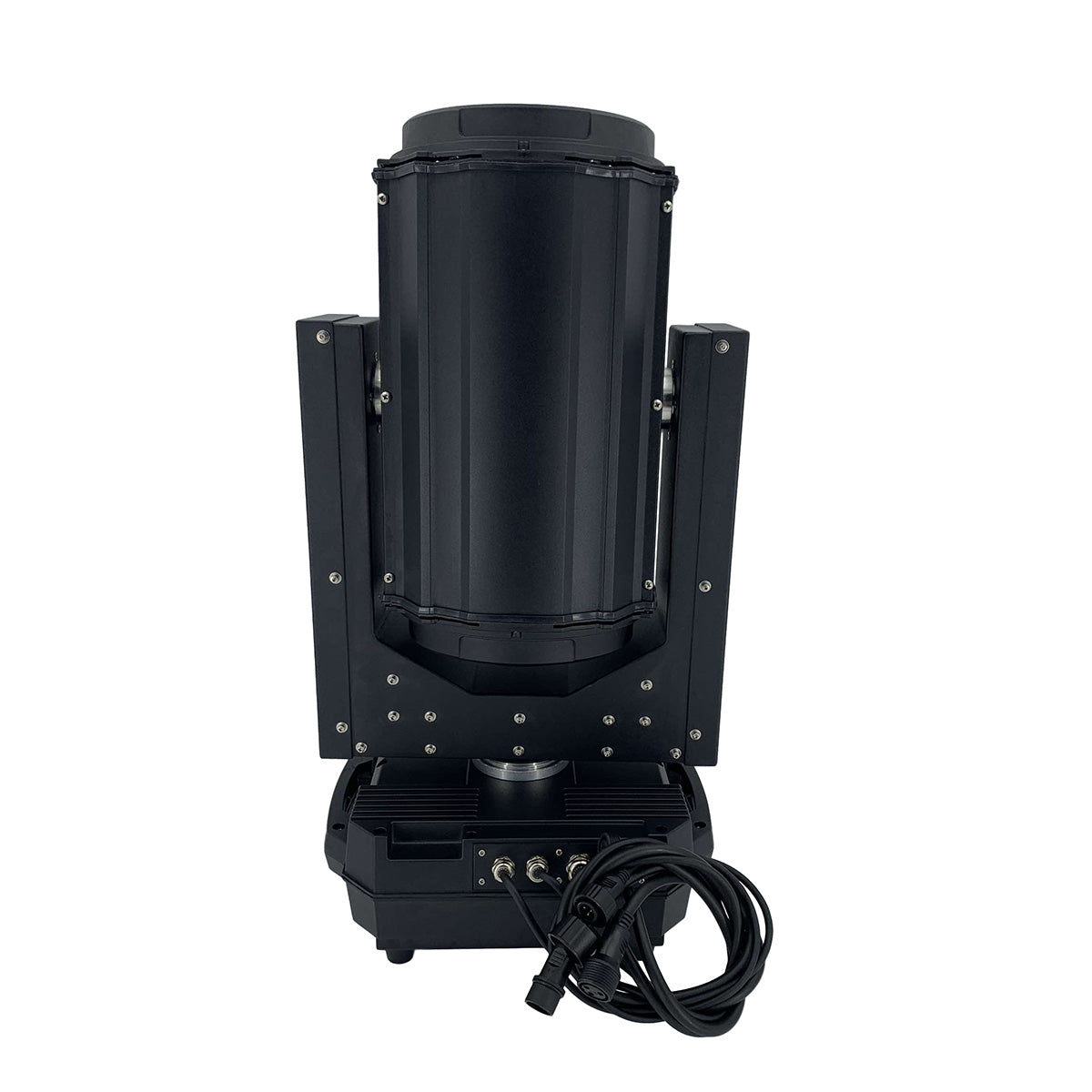

380W Waterproof Moving Head Beam Light IP55

380W Waterproof Moving Head Beam Light — IP55 Outdoor-Ready Performance

The 380W Waterproof Moving Head Beam Light is built for outdoor stages, festivals, and any environment where weather resistance is essential. Rated IP55, it delivers a sharp 2.3° beam through a 145mm precision lens with a full dual-prism effects system, making it the go-to fixture for outdoor concerts, touring rigs, and permanent outdoor installations.

Electrical System

• Input Voltage: 110V–240V, 50–60Hz
• Rated Power: 650W
• Power Interface: Speakon input/output
• Signal Interface: 3-pin XLR input/output

Optical System

• Light Source: 380W | Color Temperature: 8000K | CRI ≥85
• Beam Angle: 2.3° | Lens Diameter: 145mm | Electronic linear focus
• Lamp Life: 2,000 hours

Effects System

• Gobo: 1 fixed gobo wheel with 17 patterns + open white; bi-directional rotation with shake effect
• Color: 13-color wheel + open white; bi-directional rainbow effect
• Prism 1: 24-facet rotating prism, bi-directional variable speed
• Prism 2: 48-facet rotating prism, bi-directional variable speed
• Kaleidoscope: 1 rotating kaleidoscope mirror
• Frost: 1 frost filter
• Dimming: 0–100% linear
• Strobe: 0.3–20 flashes/sec; pulse, sync/async strobe macro

Control & Movement

• DMX Channels: 16 / 20 channels
• Control: DMX512 / RDM / Master-slave / Auto / Sound-activated / Custom program
• Pan: 540° (8/16-bit) | Tilt: 270° (8/16-bit)
• Display: LCD screen, 180° rotation, bilingual menu (EN/CN)

Physical Specifications

• IP Rating: IP55 — weatherproof for outdoor use
• Mounting: Hanging or side-mount | Quick-lock with optional folding hook
• Operating Temperature: -20°C to 40°C
• Net Weight: 23KG | Dimensions: 370 x 300 x 680mm
