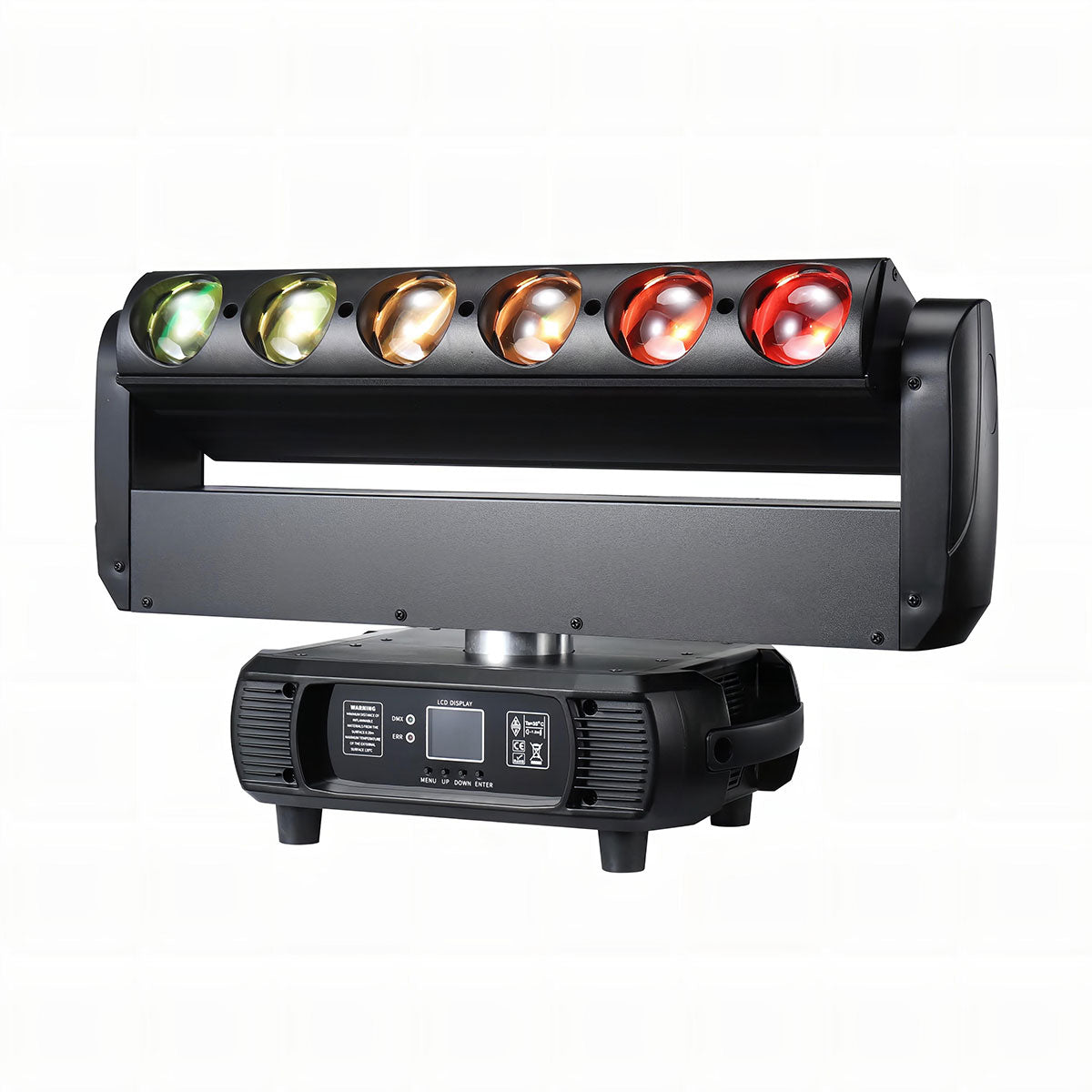

6-Eye Double-Sided Blade Moving Head Light 500W

6-Eye Double-Sided Blade Moving Head Light — 500W Infinite Pan & Tilt

The 6-Eye Double-Sided Blade Moving Head Light is a cutting-edge stage effects fixture engineered for high-energy concerts, large touring rigs, and premier EDM nightclubs. Combining six ultra-powerful 60W beam LEDs with 96 auxiliary SMD LEDs across 12 controllable segments, it delivers razor-sharp parallel beams, high-intensity strobe bursts, and continuous infinite 360° pan and tilt rotation.

Key Specifications

• Power Consumption: 500W
• Input Voltage: AC100–240V, 50/60Hz
• Light Source: 6 x 60W 6070 high-output LEDs + 96 x 7070 LEDs (12-segment auxiliary strobe/wash)
• Movement: Continuous infinite Pan & Tilt rotation (XY 360° endless sweep)
• Dimming Technology: Ultra-smooth 32-bit 0–100% linear dimming
• Strobe Rate: 1–30 flashes/sec with explosive pulse and macro effects
• Control Modes: DMX512, Standalone Auto Programs, Sound-Activated, Master/Slave, RDM bidirectional protocol
• DMX Channels: 24CH (standard mode) / 132CH (full pixel-mapping mode)
• Chassis & Thermal: Heavy-duty rugged black metal body with intelligent thermal monitoring
• Operating Temperature: -30°C to 50°C | IP20
• Connections: 3-pin XLR DMX In/Out, PowerCON In/Out

Ideal For

Electronic music festivals, arena concert tours, nightclub center-stage installations, live TV broadcasts, and dynamic aerial beam shows.
